Stainless Steel 310 Pipe Manufacturer and Supplier
Steel Pipe & Tubes has been a leading supplier of Stainless Steel piping solutions.
Stainless Steel 310 is a high-alloy austenitic stainless steel, which has been developed to be utilized in the conditions where high temperatures should be observed continuously and where there is an oxidising environment. SS 310 is a high-chromium, high-nickel alloy with a high resistance to scaling, oxidation and thermal fatigue as compared to the popular stainless steel alloys.
These are highly prevalent pipes in furnace components, boilers, heat treatment units, petrochemical units, and power plants where material high-temperature stability is very crucial. The stainless steel 310 pipes are mostly furnished in both seamless and weld types in compliance with ASTM A312 TP 310 that offers dimensional, mechanical and service life in a severe industrial service environment.
Stellar Alloys, being a manufacturer and supplier of stainless steel, 310 pipes, provides support to the needs of industries and projects with in-service requirements of high temperatures, by providing specifications on ASTM A312 TP 310 pipes that are controlled.
Stellar Alloys is a company that provides stainless alloys of 310 pipes to domestic and export work to support the EPC contractors, OEMs and industrial customers with quality and documentation portfolio.
Stellar Alloys supplies stainless alloys of 310 pipes to domestic and export projects to assist EPC contractors, OEMs, and industrial customers with a range of quality and documentation.
Table of Contents
- Specification of ASTM A312 TP 310 Seamless and Welded Pipes
- Chemical Composition of Stainless Steel 310 Pipes
- Mechanical Properties of SS 310 Pipes
- Equivalent Grades of Stainless Steel 310 Pipes
- Types & Popular Variants of SS 310 Seamless & Welded Pipe
- Sizes, Schedules and Weight of SS 310 Pipes
- Difference Between Stainless Steel 310 and 310S Pipes
- Applications of Stainless Steel 310 Pipes
- Stainless Steel 310 Pipe Price List
- Why Choose Stellar Alloys for Stainless Steel 310 Pipe
- Frequently Asked Questions About Stainless Steel 310 Pipe
Stainless Steel 310 Pipe for High Temperature and Oxidation Resistant Applications
In applications where continuous service at high temperatures is required, stainless steel 310 pipe is very common, and operating temperatures are about 11100°C in oxidizing conditions. This grade of pipe contains a large amount of chromium and nickel, making it very resistant to oxidation, scaling and the thermal fatigue process, which enables the SS 310 pipe to retain its structure even when exposed to heat over extended periods of time.
These performance attributes render stainless steel 310 pipes to be applicable in thermal processing systems like radiant heater assemblies, furnace components, boiler systems and heat exchangers that are used in oxidizing atmospheres. This material is also known to do well in mildly carburizing and nitriding environments where in the conventional austenitic grades, degradation can easily increase. As an alternative to using the stainless steel pipe and tube product line, engineers can consider lower operating temperature requirements in piping systems and select the material they would otherwise use according to the process conditions.
In the stainless steel group, temperature limits and exposure to corrosion tend to determine the grade of stainless steel chosen. Although SS 310 is usually used in extended service in high temperature, at moderate temperatures, stainless steel 317L pipe or stainless steel 304 pipe is usually used when extra corrosion resistance or cost-effectiveness is needed.
Specification of ASTM A312 TP 310 Seamless and Welded Pipes
Stainless steel 310 pipes supplied by Stellar Alloys are manufactured and tested in accordance with ASTM A312 / ASME SA312 standards for high-temperature and pressure service.
Parameter | Details |
Standard | ASTM A312 / ASME SA312 |
Grade | TP 310 |
Manufacturing Type | Seamless, Welded, ERW, EFW |
Size Range | ½” NB to 48” NB |
Length | Single Random, Double Random, Cut Length |
End Finish | Plain End, Beveled End |
Surface Condition | Annealed, Pickled, Polished |
Chemical Composition of Stainless Steel 310 Pipes
The chemical composition of SS 310 pipes provides a balance of oxidation resistance and high-temperature strength.
Element | Composition (%) |
Carbon | ≤ 0.25 |
Chromium | 24.0 – 26.0 |
Nickel | 19.0 – 22.0 |
Manganese | ≤ 2.00 |
Silicon | ≤ 1.50 |
Phosphorus | ≤ 0.045 |
Sulfur | ≤ 0.030 |
Mechanical Properties of SS 310 Pipes
Mechanical properties determine the pipe’s ability to withstand thermal and pressure stresses.
Property | Value |
Tensile Strength | ≥ 515 MPa |
Yield Strength (0.2%) | ≥ 205 MPa |
Elongation | ≥ 40% |
Hardness | ≤ 217 HB |
Maximum Service Temperature | Up to 1100°C |
Equivalent Grades of Stainless Steel 310 Pipes
Standard | Equivalent |
UNS | S31000 |
EN | 1.4841 |
DIN | X15CrNi25-20 |
ASME | SA312 TP 310 |
Types & Popular Variants of SS 310 Seamless & Welded Pipe
Stainless Steel 310 Pipe

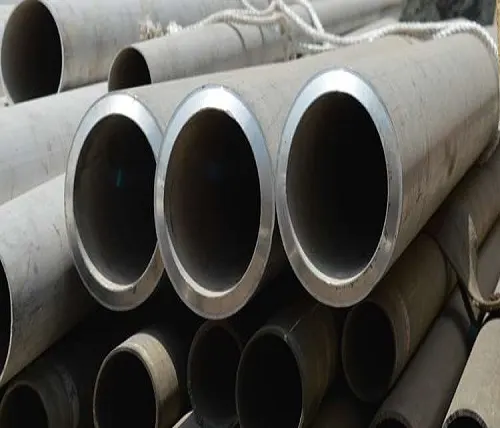

ASTM A312 TP310 Seamless Pipe

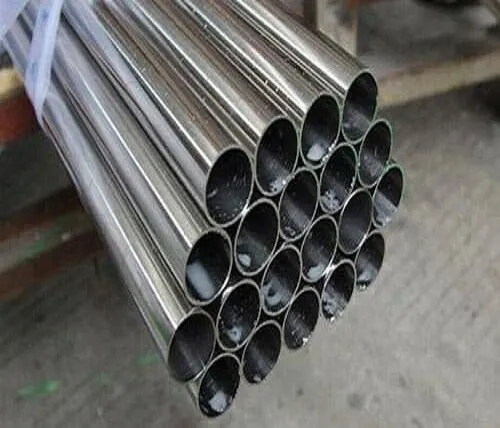

SS 310 ERW Pipe
Sizes, Schedules and Weight of SS 310 Pipes
Stainless steel 310 pipes are available in a wide range of sizes and schedules to suit different pressure and temperature requirements.
Outside Diameter | Wall Thickness Range |
6.35 mm – 610 mm | 0.3 mm – 50 mm |
Available Schedules:
Sch 5S, Sch 10S, Sch 40, Sch 80, Sch 160, XXS
Detailed weight charts and dimensional data are provided based on project requirements and applicable standards.
Difference Between Stainless Steel 310 and 310S Pipes
Property | SS 310 | SS 310S |
Carbon Content | Higher | Lower |
Weldability | Good | Better |
Carbide Precipitation Risk | Higher | Lower |
Typical Use | High-temperature service | Welded high-temperature systems |
Standard | ASTM A312 TP 310 | ASTM A312 TP 310S |
Applications of Stainless Steel 310 Pipes
Stainless steel 310 pipes are often used in various industries requiring heat resistance and oxidation stability.
Common applications include:
- Furnace tubes and radiant heater components
- Boilers and superheaters
- Used to make heat exchangers and thermal processing equipment
- Many Petrochemical and refinery piping use this material.
- Power generation plants
- Cement and mineral processing units
In case of a lower-temperature corrosion-resistant system, purchasers may also consider Stainless Steel Pipe and Tube products, which include: 304 Stainless Steel Pipe or 316 Stainless Steel Pipe according to the service conditions.
Stainless Steel 310 Pipe Price List
The cost of Stainless Steel 310 pipes will differ based on size and wall thickness, type of manufacturing, quantity, and inspection constraints. Being a high-temperature austenitic stainless steel, which contains high levels of chromium and nickel, the price of SS 310 depends on the prices of raw materials and adherence to specifications.
Stellar Alloys offers hinted prices on A312 TP 310 seamless and welded pipes depending on the project measures. Lastly, the final pricing is verified by checking dimensions, testing, scope, and delivery schedule as well as documentation requirements.
Product Type | Size Range | Wall Thickness | Standard | Price |
SS 310 Seamless Pipe | ½” NB to 24” NB | Sch 5S to Sch XXS | ASTM A312 TP 310 | |
SS 310 Welded Pipe | ½” NB to 48” NB | As specified | ASTM A312 TP 310 | |
SS 310 ERW Pipe | ½” NB to 24” NB | As specified | ASTM A312 TP 310 | |
SS 310 Heat Exchanger Pipe | 12.7 mm to 114.3 mm | Thin to medium | ASTM A312 | |
Custom SS 310 Pipe | As per requirement | As specified | ASTM / ASME |
Note: Stainless steel 310 prices are reflective and are subject to fluctuation depending on the price of nickel and chromium in the market. The final price will be based on the size of the pipes, manufacturing process, quantity of pipes, finish, testing, and certification areas. Technical evaluation and confirmation of the price come after confirmation of the order.
To obtain the most recent price of the SS 310 pipe or a bulk order discount, or to check the in-stock levels, a buyer may request a quotation with the size and specification.
Why Choose Stellar Alloys for Stainless Steel 310 Pipe
Stellar Alloys provides 310 and 310S Stainless Steel pipes to use in the high-temperature industrial environments that need high reliability of materials and specification conformity of the material. We supply ASTM A312 TP 310 grades in furnaces, boilers, heat treatment equipment, and petrochemical systems.
Our pipes (SS 310) are welded and smooth with certification of EN 10204 3.1 and optional tests like PMI, hydrostatic, as well as radiographies, as mandated by the project requirement. Between 310 and 310S, the selection of grade can be provided depending on welding requirements and service temperature.
Stellar Alloys, with a ready stock of all standard sizes and coordinated export supply, serves the maintenance needs as well as the project-based orders that have uniform documentation and traceability.
Related Links
Frequently Asked Questions About Stainless Steel 310 Pipe
SS 310 performs better in high-temperature service, while SS 304 is more economical for general use.
SS 310 has higher chromium and nickel, giving it greater heat resistance compared to 304 and 316 grades.
Yes, it can be welded with standard TIG/MIG methods using ER310 fillers for best results.
These pipes can handle continuous service up to 1100°C without losing strength.
310 has higher carbon for creep strength, while 310S has lower carbon for better weldability.
